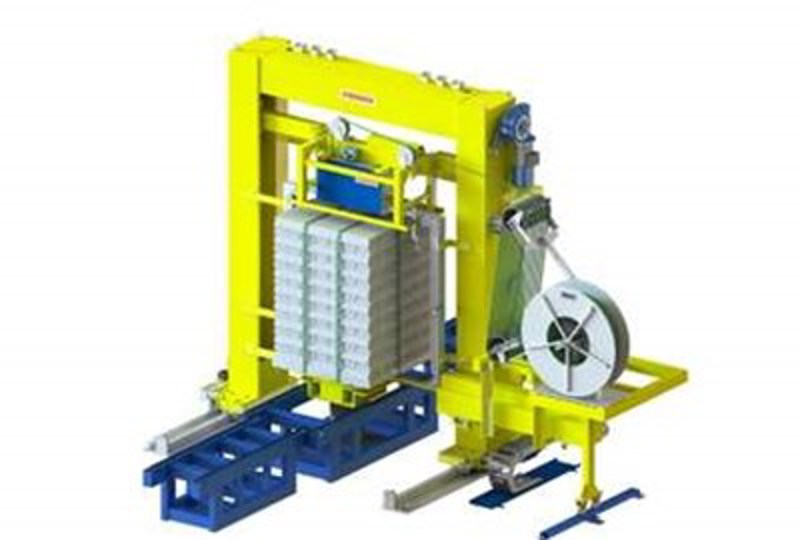

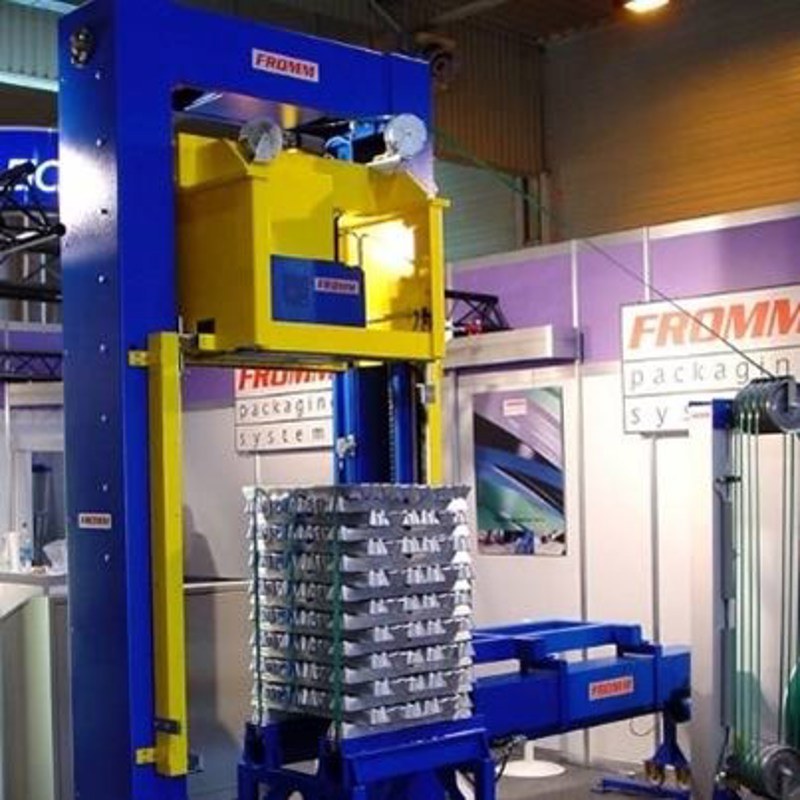

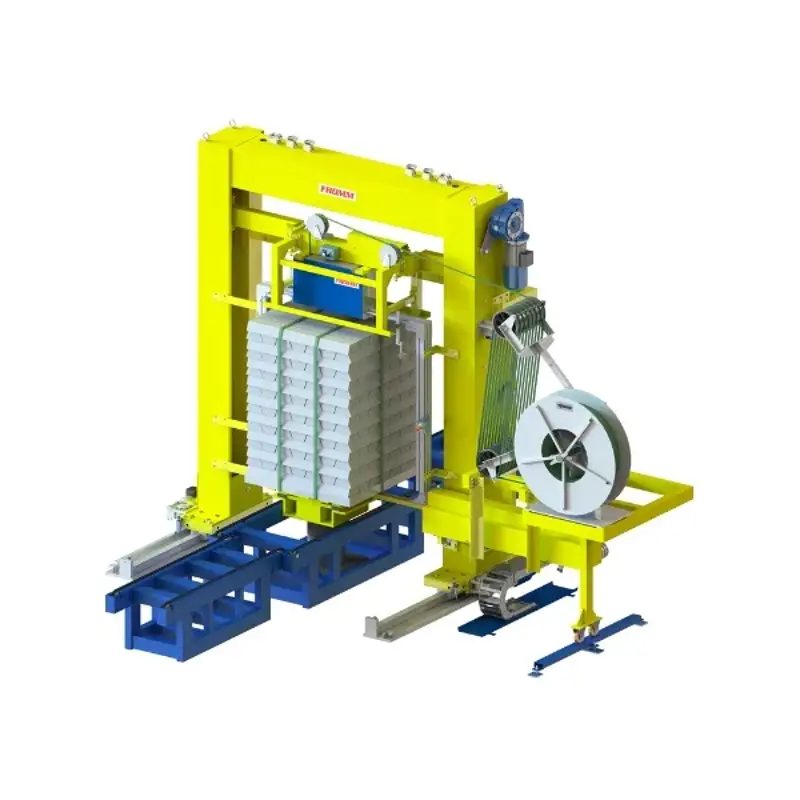

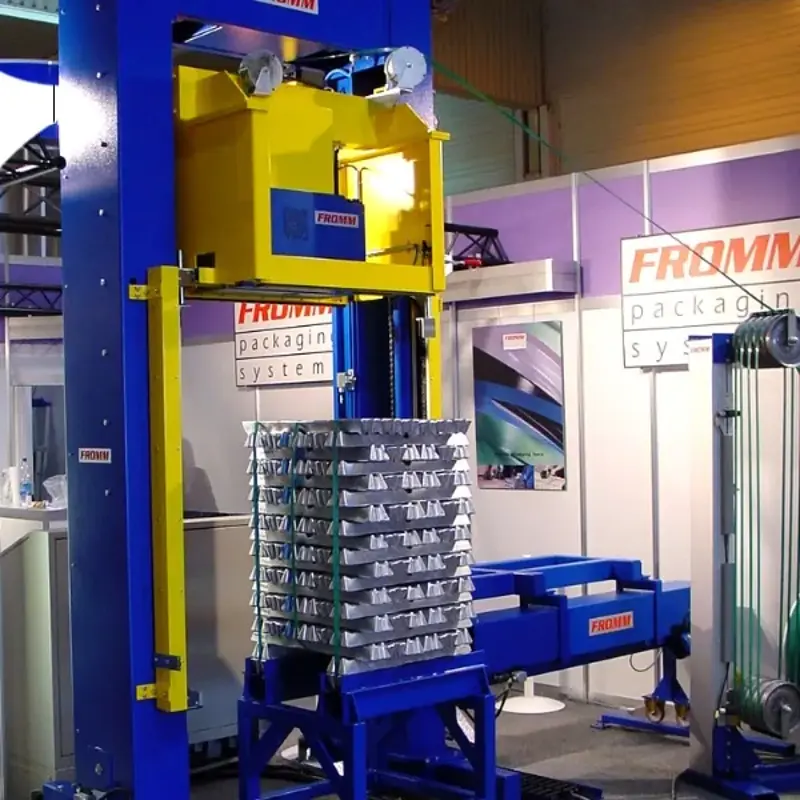

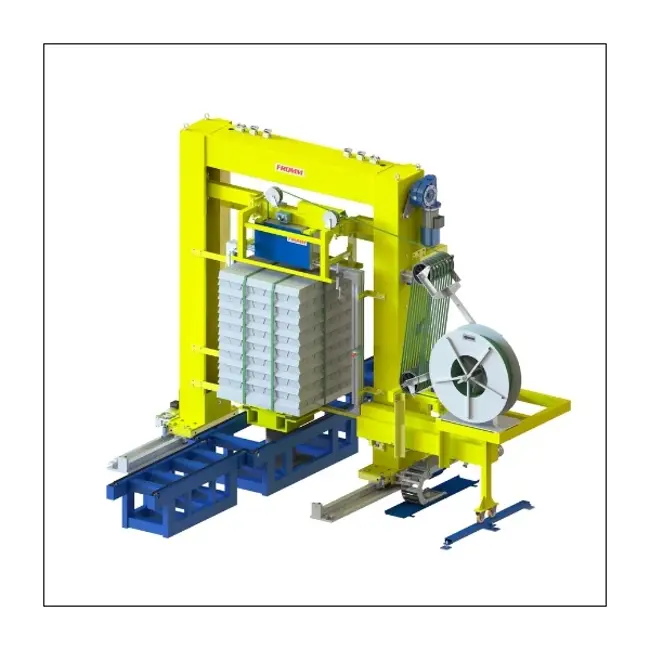

Automatic Inline Strapping Machine - 20000 Series
High speed automatic strapping machine ideal for lightweight and fragile products
The 20000 series automatic strapping machine is capable of handling both steel and plastic strapping, to facilitate high-speed inline banding.
It is available with either a steel or aluminium frame, tailored to fit the overall design, and offers a variety of options such as cardboard corner protection, compression systems, and different dispensers based on production requirements.
Designed to move into the strapping position while keeping the pallet stationary, the 20000 series is especially suitable for lightweight products like beverage containers, corrugated board, and fragile items such as furniture and logistical goods. Instead of investing in two parallel strapping systems, the 20000 series provides a cost effective solution.
Two Year Warranty
Simulation Testing
5 Star Rated
Environmentally Friendly
Features
- Strapping head on top
- Moving features
- Automatic and manual functionality
- Siemens controls and touch screen
- Modular with many add on features
- Uses PET or Steel strapping
- Fast strapping cycle
Benefits
- Plug and play technology
- High production capacity
- Extensive customisation and options available
- Fast and simple roll changes
- FROMM 2 year warranty
- 150,000 service intervals
- On screen fault finding
Machine Specification
Dependent on conveyors
Unlimited
Friction, up to 85% of strap breaking strength
12 - 32 mm
9 - 32 mm
105 mm / second
7000 Newtons
18000 Newtons
Machine Options
Fixed or Gated
Fixed or Floating
Top or Side, Top and Side
1000 - 5000 kg
Standard, jumbo or superjumbo
Top and Bottom, or Top or Bottom
Magazine or Robot
Automatic Head Cleaning
Fixed track or bayonet to strap through the pallet
FROMM plastic strapping is manufactured in one of our global production centres using almost 100% recycled polyester resin. Extruded on one of our state of the art production facilities, FROMM uses RPET resins with high IV values. Strapping can be offered on small 20 kg coils up to 250 kg super jumbo rolls.
Reuse: PET straps are not generally reused in their original form, but they contribute to a sustainable cycle. Once the strapping has served its purpose, it can be collected, recycled, and transformed into new, high-quality products, helping to minimise waste.
Reduce: By choosing lightweight PET straps, designed for our machines and tools, businesses can lower transportation emissions and decrease material usage, contributing to a move sustainable solution.
Recycle: Fully recyclable, our PET straps support a circular economy. After use, they can be processed into new products, reducing landfill waste and promoting sustainability.
