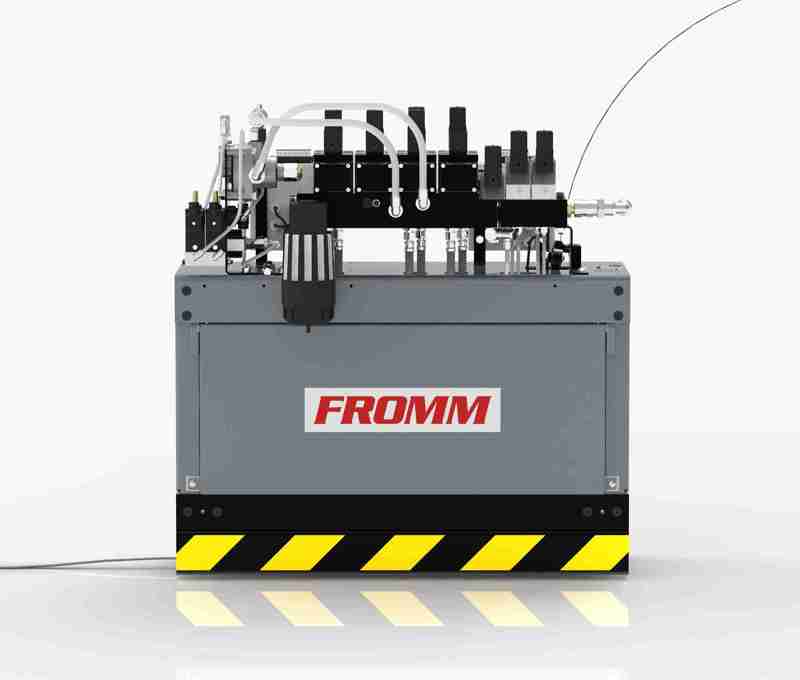

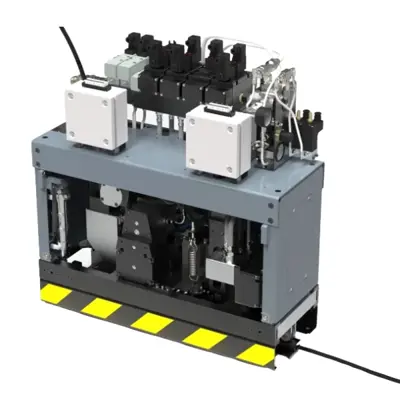

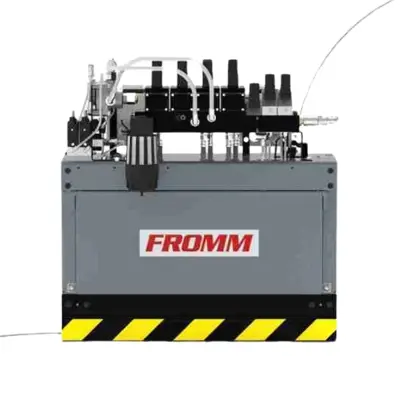

MH200 Steel Strapping Head

The FROMM MH200 is a robust steel strapping head designed for use in the timber, metal, and building product sectors, accommodating 19mm to 32mm steel strapping.

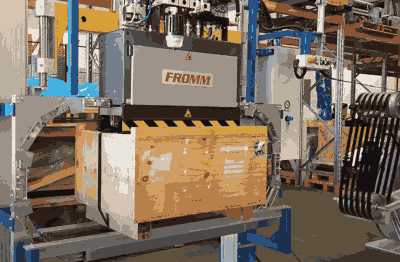

This model excels in high-speed, continuous operations, making it exceptionally efficient for general baling and strapping of unitised products. The MH200 can be conveniently installed on the top, on the side, or in a horizontal position of a fully automatic strapping machine or inline system.

Request a quote

Two Year Warranty

Simulation Testing

5 Star Rated

Environmentally Friendly

Features

High strap tension up to 18000N, adjustable
High seal efficiency up to 80%
Linear strap tensioning system
Both strap ends tensioned simultaneously
Sealless strap joint with MicroLock secured seal
Modular feeding and sealing system
Low wear on punching tools
Pneumatically powered
Easy integration
Fast exchange of cutting and punching tools
Strapping of small package sizes

Benefits

Low maintenance
Long service intervals
Proven "FROMM" technology
Can be retrofitted into other systems
Low cost of spare parts
Excellent seal efficiency

Technical Specification

Suitable Strapping Qualities

Regular duty steel (Uniflex) up to 850 N High tensile steel (Ultraflex) up to 1100 N

Strapping Dimensions

Width: 19.0 – 32.0 mm

Thickness: 0.70 – 1.00 mm

Strapping Head Type

Pneumatic

Sealing Method

Sealless joint (with three notches)

Seal Strength

Up to 80% (dependent on strap quality)

Strap Tention

Up to 18000 N, adjustable

Feed / Retract Speed

2 metres / second, adjustable

Package Size

Min. W200 x H100 mm Max. W2500 x H3000 mm

Power

Pneumatic, air pressure min. 6 bar Consumption approx. 200 NL / cycle

Control Voltage

24 V DC

Domension

L 777 x W 270 x H 810 mm

Weight

160 kg

Download library

Steel Strapping Heads Brochure

Download

FROMM’s steel strap options are engineered with durability and strength in mind while also considering environmental footprint. Steel, being one of the most recyclable materials, offers long-term sustainability. Our steel straps can be melted down and reused repeatedly without losing structural integrity. By choosing steel strapping, companies can secure their products while minimizing environmental impact by reducing the need for new raw materials.

Reuse: Steel strapping is incredibly strong, particularly in closed-loop or internal handling systems. Its ability to maintain strength and durability over time makes it an excellent choice for industries looking to maximize product lifecycle.

Reduce: FROMM’s steel strapping is available in regular duty and high tensile varieties, meaning businesses can choose the exact strength needed without overusing materials. This helps reduce the total amount of steel required per application, optimizing resource efficiency.

Recycle: Steel is one of the most recyclable materials on the planet. FROMM’s steel strapping can be recycled indefinitely without losing its properties, making it a sustainable choice for industries. Recycling steel reduces the need for virgin raw materials and supports energy conservation by lowering the carbon footprint associated with steel production.
