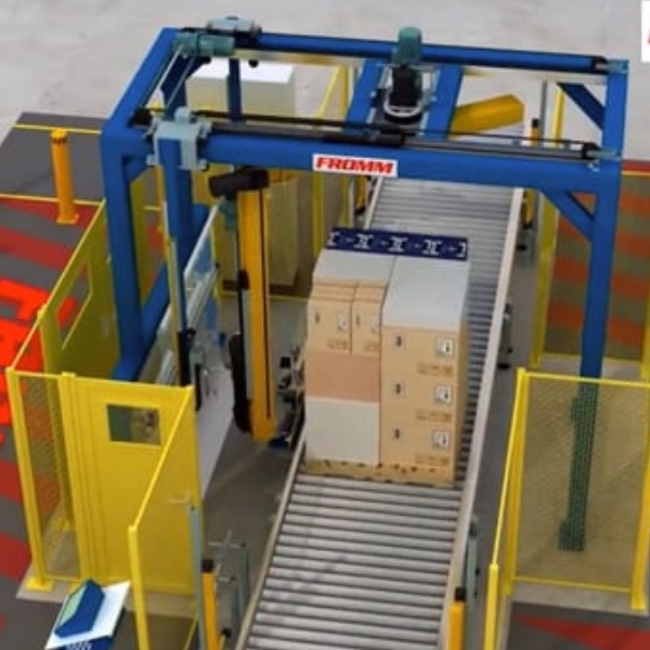

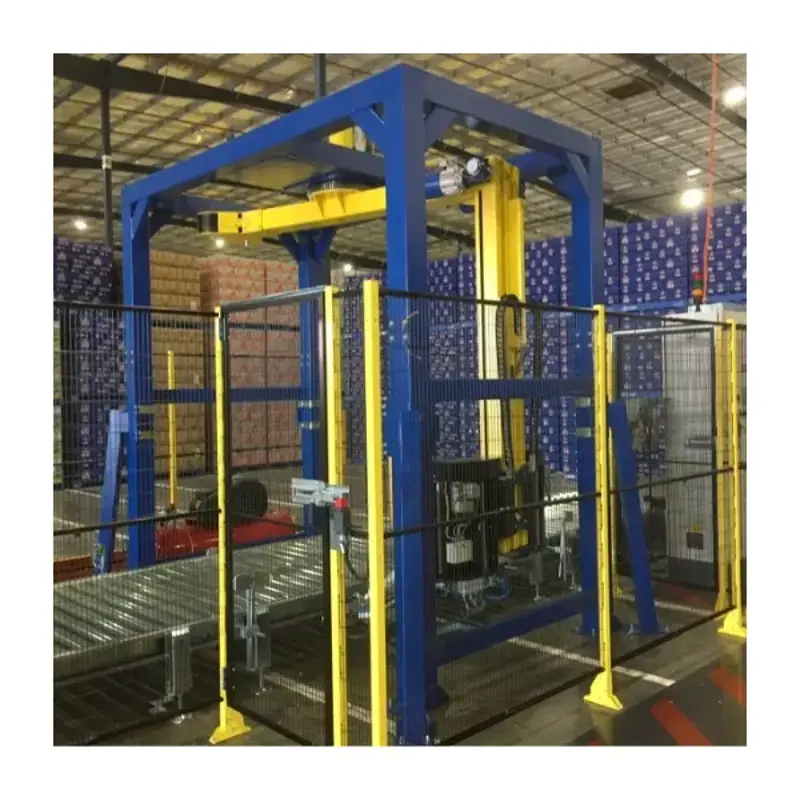

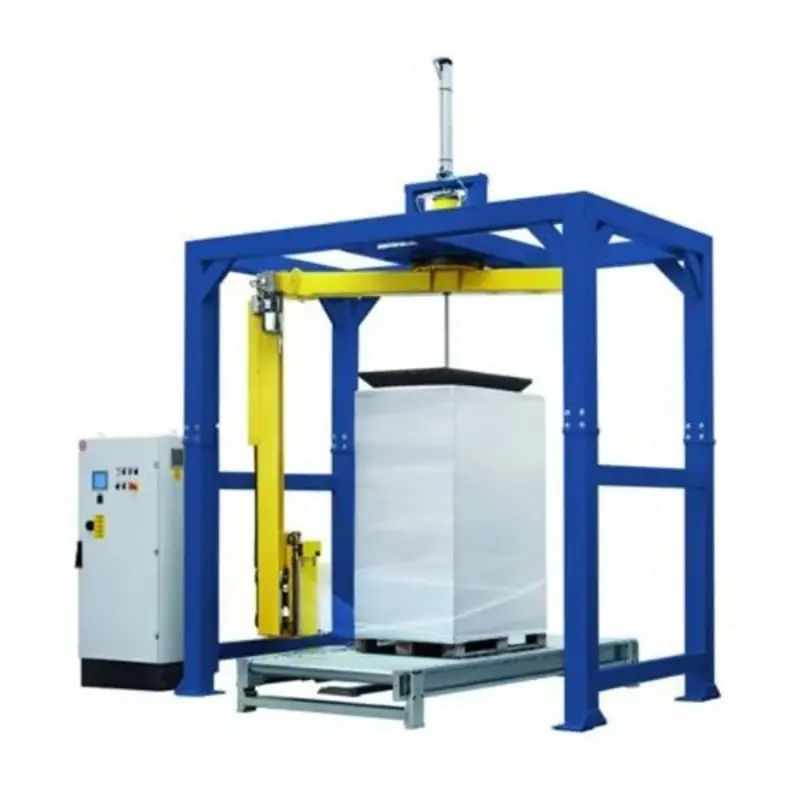

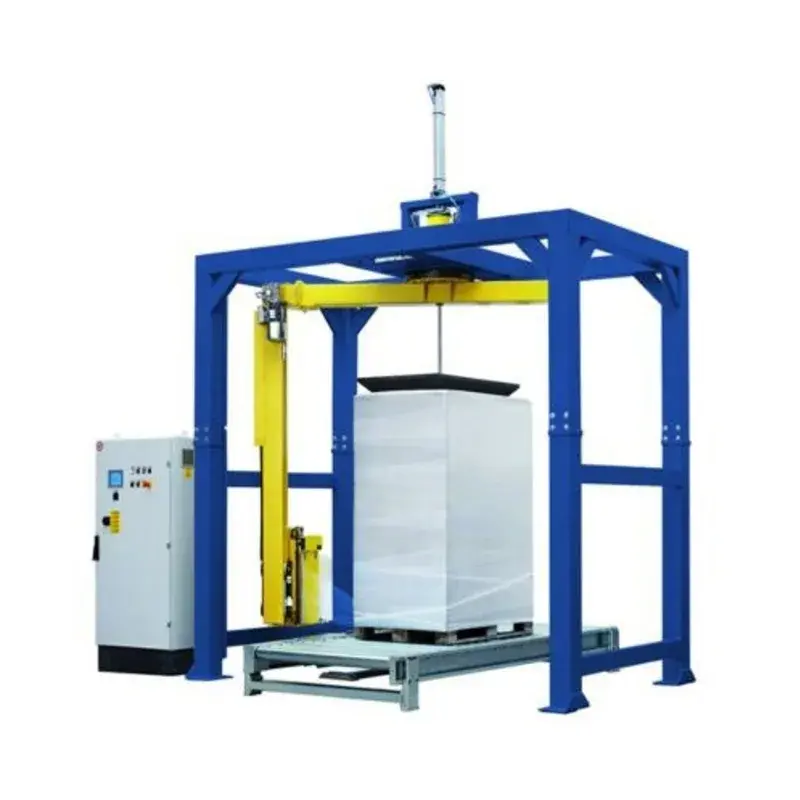

FA7 Series Automatic Inline Rotary Arm Wrapping Machine

Automatic Rotating Stretch Film arm will wrap the pallet while your load remains stationary

The FROMM FA7 Series Automatic Inline Rotary Arm Wrapping Machine delivers fast & efficient wrapping and load security. The perfect machine when your pallet load needs to be stationary. The rotating arm will wrap the pallet with adjustable speeds up to 35rpm. The FA7 is capable of wrapping up to 100 pallets / hour.

With extensive customisation options available, the FA7 adapts to a wide range of industry applications, ensuring you get a tailored solution that meets your unique packaging needs.

Backed by a FROMM two-year warranty and supported by our dedicated in house service department, the FA7 is the ideal solution whether you need a simple stretch wrapping system or a complex turnkey packaging line.

Two Year Warranty
Two Year Warranty
Simulation Testing
Simulation Testing
5 Star Rated
5 Star Rated
Environmentally Friendly
Environmentally Friendly

Features

  • Automatic inline stretch wrapping machine
  • 200% powered pre-stretch film delivery
  • Extensive add on options
  • Robust and durable design
  • On screen diagnostics
  • Adjustable arm speeds up to 35 rpm



Options

  • Conveyors Roller or chain
  • Conveyors Infeed and outfeed
  • Safety Systems Fencing, muting sensors a and light curtains
  • Topsheet Dispenser In-cycle or in-line
  • Top Platen
  • Label Applicators
  • Pallet Lifting
  • Cold Temperature Package
  • Hot Temperature Package
  • Twin Wrapping Heads

Benefits

  • Plug & play technology
  • Automated high production capacity
  • Can accommodate various loads and configuration
  • Tailored customisation packages
  • Fast and simple roll changes
  • Stand-alone or integrated operation
  • FROMM 2 year warranty
Machine Specifications
Max. Load Weight

2000kg

Max. Standard Load Size

1220 x 1220 x 2200mm

Pre-stretch System

0 - 400% - 200% Standard

Cut & Wipe Film Release

Yes - Standard

Rotary Arm Speed

0 - 35 RPM

Throughput

Up To 70 Pallets / Hour

PLC

Siemens S7 - 200 (others on request)

Film Carriage

500 - 750 mm

Machine Options
Conveyors

Roller or Chain

Converyors

Process in, our, up & downstream

Safety Systems

Fencing, muting sensors and light curtains

Topsheet Dispenser

Available

Top Platen

Available

Label Applicators

Available

Pallet Lifting

Available

Cold Temperature Package

Available

Hot Temperature Package

Available

Twin Wrapping Heads

Available

Plastic stretch wrap is an integral material for safe and secure pallet load containment. FROMM’s high-quality, tear-resistant stretch wrap, including our Verde stretch films made from a 30% blend of recycled materials and 70% virgin materials, stretches further than ever—capable of significant stretch without compromising product integrity for suitable products. Bundled with our wrapping machines, our customers use less film, resulting in reduced packaging and waste disposal costs. For example, our Forza range offers up to 250% stretch, effectively reducing single-use plastics, making it an ideal choice for businesses focused on sustainability. The enhanced stretchability means less material is required overall, and precise product usage enabled by our wrapping machines minimizes unnecessary waste.

Reduce: Our Forza 12um film significantly reduces the amount of plastic needed, providing the same performance as thicker films. This helps lower plastic consumption and supports businesses in meeting their sustainability goals.

Reuse: While most stretch wrap is designed for single use, we encourage reusing leftover wrap for smaller, in-house applications where feasible, helping extend its life before disposal.

Recycle: Our Verde stretch films are made with 30% post-consumer recycled (PCR) material and are fully recyclable under the recycling code LLDPE (4). We promote proper recycling practices and work with clients to ensure that used wraps enter the recycling stream whenever possible.

Need the perfect packaging solution? Let's wrap this up!
