FR390 Semi Automatic Stretch Wrapping Robot

Robot Wrapper Capable of Stretching Film up to 200%


The FR390 is a self-propelling, powered pre-stretch wrapping robot, designed to wrap a variety of pallet sizes and shapes. The robot is easy to operate, Australian compliant and buildable to your wrapping needs with optional add-ons & wrap programs.

Featuring a single motor pre-stretch film carriage, the FR390 can stretch film up to 200%.  Generating 3m of film from 1m of film input. This means the film is stretched to optimise load containment and delivers a low cost per pallet wrapped.

Unlike traditional turntable wrappers, the FR390 stretch wrapping robot can operate in areas where space is limited and is mobile meaning it can be moved around the warehouse where needed.  The robot also comes standard with a safety photoelectric cell that stops the wrapper in the event of an object entering its path. Ensuring the safety of all in the area during the wrapping cycle.

Two Year Warranty
Two Year Warranty
Simulation Tested
Simulation Tested
5 Star Rated
5 Star Rated
Environmentally Friendly
Environmentally Friendly

Features

  • High capacity battery
  • Mobile and self-propelled
  • Capable of pre-stretching film 200%
  • Automatic photocell to detect pallet height
  • Pre-set and customisable wrapping programs

Benefits

  • User friendly
  • Low-maintenance
  • Alternative to hand wrapping
  • Capable of wrapping up to 150 pallets per charge
  • Safety Sensors to detect movement in wrapping path
Machine Specification
Carriage

Pre-stretch, one motor

Pre-Stretch

0-200 %

Maximum Pallet Weight

Unlimited

Maximum Pallet Height

1100 mm (plus pallet)

Radius

1100 mm (plus pallet)

Speed Control

Frequency converter

Batter Power

2 x 12 Volt - 110 Ah serial connected

Power

24 Volt battery

Operating Conditions

5 - 45°C

Options
Extended Mast

Up to 3500 m

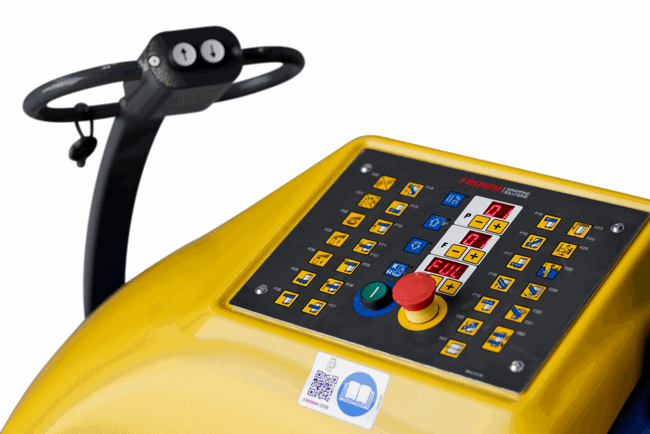

Control Panel

OP 1 or OP 2 (99 wrap programs)

Power

24 Volt Battery

Black Photo Eye

For Dark Products

Cutting Device

Automatic Film Cutting System

Download library
Data Sheet FR390 Series

Download

Plastic stretch wrap is an integral material for safe and secure pallet load containment. FROMM’s high-quality, tear-resistant stretch wrap, including our Verde stretch films made from a 30% blend of recycled materials and 70% virgin materials, stretches further than ever—capable of significant stretch without compromising product integrity for suitable products. Bundled with our wrapping machines, our customers use less film, resulting in reduced packaging and waste disposal costs. For example, our Forza range offers up to 250% stretch, effectively reducing single-use plastics, making it an ideal choice for businesses focused on sustainability. The enhanced stretchability means less material is required overall, and precise product usage enabled by our wrapping machines minimizes unnecessary waste.

Reduce: Our Forza 12um film significantly reduces the amount of plastic needed, providing the same performance as thicker films. This helps lower plastic consumption and supports businesses in meeting their sustainability goals.

Reuse: While most stretch wrap is designed for single use, we encourage reusing leftover wrap for smaller, in-house applications where feasible, helping extend its life before disposal.

Recycle: Our Verde stretch films are made with 30% post-consumer recycled (PCR) material and are fully recyclable under the recycling code LLDPE (4). We promote proper recycling practices and work with clients to ensure that used wraps enter the recycling stream whenever possible.
