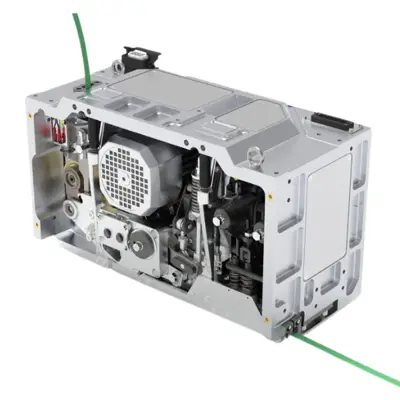

MH600 Polyester Strapping Head
The FROMM MH600 is engineered for automatic heavy-duty industrial PET strapping applications, and is designed to enhance both throughput and efficiency.
Featuring a compact and modular design, the MH600 offers a high adjustable strap tension of up to 7000N, with a versatile strap width range of 13mm - 19mm. Additionally, it includes a temperature monitoring feature, ensuring consistent and efficient sealing.
Created for smooth integration, it comes equipped with three side suspension points and plug.
Two Year Warranty
Simulation Testing
5 Star Rated
Environmentally Friendly
Features
- Compact and modular design
- One piece of aluminium cast housing
- Strap tension up to 7000N, adjustable
- Strap guide open feature
- Reliable separate feeding, tensioning and friction weld sealing systems
- Environment temperature monitoring resulting in consistent seal efficiency
- Use of state-of-the-art manufacturing, controlling and material technology
- Three side suspension points and plug connections for easy integration
- Durable and easy to maintain, ensuring high availability
Benefits
- Low maintenance
- Long service intervals
- Proven "FROMM" technology
- Can be retrofitted into other systems
- Low cost of spare parts
- Excellent seal efficiency
Machine Specification
13 - 19 mm
0.64 - 1.53 mm
Up to 85% of strap breaking strength
Friction weld
Up to 7000 N
5.3 metres / second
W 150 x H 180 mm
W 3000 x H 3000 mm
400 V / 3 PE / 50 Hz
1.1 kW
24 V DC
L 615 x W 307 x H 446 mm
115 kg
Download library
Plastic Strapping Heads Brochure
Plastic Strapping Heads Brochure
FROMM’s steel strap options are engineered with durability and strength in mind while also considering environmental footprint. Steel, being one of the most recyclable materials, offers long-term sustainability. Our steel straps can be melted down and reused repeatedly without losing structural integrity. By choosing steel strapping, companies can secure their products while minimizing environmental impact by reducing the need for new raw materials.
Reuse: Steel strapping is incredibly strong, particularly in closed-loop or internal handling systems. Its ability to maintain strength and durability over time makes it an excellent choice for industries looking to maximize product lifecycle.
Reduce: FROMM’s steel strapping is available in regular duty and high tensile varieties, meaning businesses can choose the exact strength needed without overusing materials. This helps reduce the total amount of steel required per application, optimizing resource efficiency.
Recycle: Steel is one of the most recyclable materials on the planet. FROMM’s steel strapping can be recycled indefinitely without losing its properties, making it a sustainable choice for industries. Recycling steel reduces the need for virgin raw materials and supports energy conservation by lowering the carbon footprint associated with steel production.
