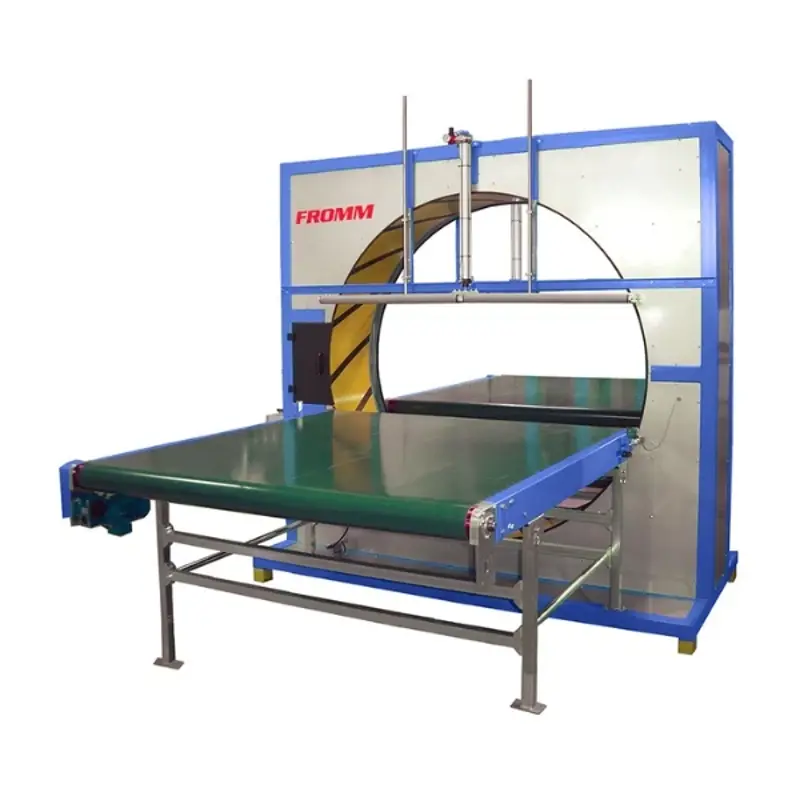

FV350-200 Automatic Inline Orbital Wrapping Machine

Automatic Inline Orbital Wrapping Machine is designed to stretch wrap long products

The FROMM FV350-200 Automatic Inline Orbital Wrapping Machine is designed to stretch wrap long products such as pipes, tubes and rods. This fully automatic programmable machine with a 2000mm diameter ring, when combined with conveyors, and safety systems is the ideal solution for small process lines.

Extremely low maintenance, the FROMM FV range is exceptionally easy to install & operate - Plug and play, no fuss.

All equipment is supported by our on-site mobile service team and spare parts if needed are readily available.

Optional extra’s include - Top presser, side rollers, driven conveyors, automatic driven rollers, short product bridge.

Two Year Warranty
Two Year Warranty
Simulation Testing
Simulation Testing
5 Star Rated
5 Star Rated
Environmentally Friendly
Environmentally Friendly

Features

  • Double reel film dispensers
  • 2000mm wrapping ring
  • Adjustable speed (RPM)
  • Mechanical film brake
  • Easy to use
  • Automatic film cutting at end of wrap cycle
  • To be placed in production line
  • Six wrapping programs available
  • Lots of add on options

Benefits

  • Twin wrapping heads for optimal function
  • High production throughput
  • Easily accommodate different products
  • Reliable and robust
  • Programmable wrapping functions
Machine Specifications
Ring Diameter

2000 mm

Max Product Size

H: 1440 mm , W: 1990 mm

Min Product Size

H: 400 mm, W: 400 mm

Max Rotating Speed

55 RPM

Max Product Weight

Dependent On Conveyors

Film Width

250 mm

Power

415 / 50 Hz / 3 Phase

Air Supply Needed

6 Bars

Machine Options
Conveyors

Infeed And Outfeed

Automatic Film Cut And Clamp

Available

Top Pressers

Available

Bridge For Short Products

Available

Safety System

Available

Download library
FV350-200-Brochure

Download

Plastic stretch wrap is an integral material for safe and secure pallet load containment. FROMM’s high-quality, tear-resistant stretch wrap, including our Verde stretch films made from a 30% blend of recycled materials and 70% virgin materials, stretches further than ever—capable of significant stretch without compromising product integrity for suitable products. Bundled with our wrapping machines, our customers use less film, resulting in reduced packaging and waste disposal costs. For example, our Forza range offers up to 250% stretch, effectively reducing single-use plastics, making it an ideal choice for businesses focused on sustainability. The enhanced stretchability means less material is required overall, and precise product usage enabled by our wrapping machines minimizes unnecessary waste.

Reduce: Our Forza 12um film significantly reduces the amount of plastic needed, providing the same performance as thicker films. This helps lower plastic consumption and supports businesses in meeting their sustainability goals.

Reuse: While most stretch wrap is designed for single use, we encourage reusing leftover wrap for smaller, in-house applications where feasible, helping extend its life before disposal.

Recycle: Our Verde stretch films are made with 30% post-consumer recycled (PCR) material and are fully recyclable under the recycling code LLDPE (4). We promote proper recycling practices and work with clients to ensure that used wraps enter the recycling stream whenever possible.
