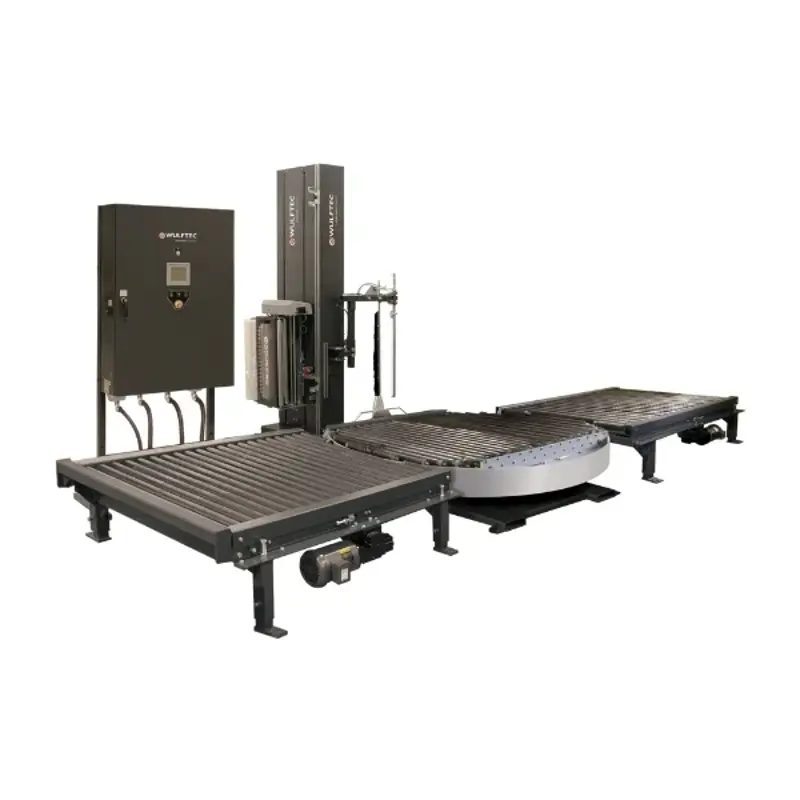

Wulftec WCA-SMART Automatic Inline Turntable Wrapping Machine

Automatic Wrapping Machine that can wrap a pallet without human involvement

The Wulftec WCA-SMART Automatic Inline Turntable Wrapping Machine can be integrated into an existing packaging line or stand-alone.

Capable of wrapping up to 50 pallets per hour, the WCA Smart Stretch Wrapper can wrap a pallet without human involvement.

The turntable rotates as the film carriage goes up and down to secure valuable cargo for storage and transportation. Customization packages mean the WCA Smart Pallet Wrapping System can handle tall loads up to three metres. Work in cold environments, with the addition of a platen less stable pallets, can also be wrapped. Integrating a top sheet dispenser to the WCA wrapper provides the ability to waterproof or dustproof your pallet.

It features the FROMM two year warranty and can be upgraded to five years with a film contract included.

Two Year Warranty
Two Year Warranty
Simulation Testing
Simulation Testing
5 Star Rated
5 Star Rated
Environmentally Friendly
Environmentally Friendly

Features

  • 1850kg load weight capacity
  • 100% structural steel construction
  • Maintenance friendly
  • Allen Bradley controls and touchscreen
  • 500mm NO-THREAD film carriage and 250% stretch capacity

Benefits

  • Capable of wrapping up to 50 pallets / hour
  • High degree of customisation available
  • Easy on screen diagnostics panel
  • Ideal for harsh environments
  • Stand-alone system or integrated
Machine Specification
Max. Load Weight

1850 kg

Max. Load Size

1270 x L 1270 x H 2030 mm

Pre-Stretch

250 %

Rotary Arm Speed

16 RPM

Controls

Allen Bradley

Throughput

Up to 50 pallets / hour

Film Carriage

500 mm (standard)

Power

 415 / 3 / 15

Air Supply Needed

3 CFM @ 80 PSI

Machine Options
Conveyors

Roller or chain

Conveyors

Infeed, outfeed and process conveyor

Safety System

Category 3 and 4

Film Carriage

750 mm

Topsheet Dispenser

Available

Top Platen

Available

Roping Device

Manual or Pneumatic

Extensions

Increased Height / Width

Heat Seal

Conveyor Mounted

Paint

Custom Colours Protective Paint

Download library
WCA-Smart-Brochure

Download

Plastic stretch wrap is an integral material for safe and secure pallet load containment. FROMM’s high-quality, tear-resistant stretch wrap, including our Verde stretch films made from a 30% blend of recycled materials and 70% virgin materials, stretches further than ever—capable of significant stretch without compromising product integrity for suitable products. Bundled with our wrapping machines, our customers use less film, resulting in reduced packaging and waste disposal costs. For example, our Forza range offers up to 250% stretch, effectively reducing single-use plastics, making it an ideal choice for businesses focused on sustainability. The enhanced stretchability means less material is required overall, and precise product usage enabled by our wrapping machines minimizes unnecessary waste.

Reduce: Our Forza 12um film significantly reduces the amount of plastic needed, providing the same performance as thicker films. This helps lower plastic consumption and supports businesses in meeting their sustainability goals.

Reuse: While most stretch wrap is designed for single use, we encourage reusing leftover wrap for smaller, in-house applications where feasible, helping extend its life before disposal.

Recycle: Our Verde stretch films are made with 30% post-consumer recycled (PCR) material and are fully recyclable under the recycling code LLDPE (4). We promote proper recycling practices and work with clients to ensure that used wraps enter the recycling stream whenever possible.
